17 Products

•

  301 – .88" (22.3 mm) over travel, low profile, loads up to 175 lbs. (80 kg) per pair, non-disconnect, optional enclosure mounting brackets available.
•

  3600 – Full extension, loads up to 275 lbs. [124 kg] per pair, non-disconnect, hold-in detent.
•

  3601 – 1" (25.4 mm) over travel, loads up to 255 lbs. (116 kg) per pair, non-disconnect, optional enclosure mounting brackets available.
•

  3607 – Full extension, lock-out, loads up to 275 lbs. [124 kg] per pair, lever disconnect, optional enclosure mounting brackets available.
•

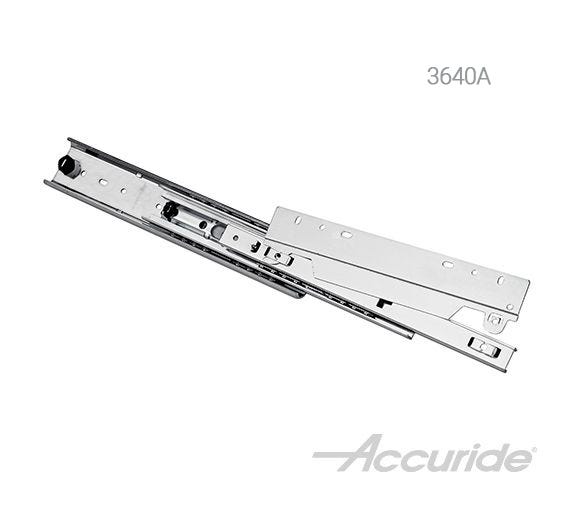

  3640A -Heavy-Duty Over-Travel Slide with Adapter Rail Mount Disconnect
•

  3641 – 1" (25.4 mm) over travel, interlock feature allows only one drawer to open at a time, loads up to 180 lbs. (82 kg) per pair, rail and pocket mount/disconnect system.
•

  3642 - Companion Slide to Model 3641
•

  3657 – Full Extension, loads up to 275 lbs. [124 kg] per pair, lever disconnect.
•

  7950 – Full extension, dual mounting capability, side mount load capacity up to 350 lbs. (159 kg) per pair, flat mount load capacity up to 150 lbs. (68 kg) per pair, non-disconnect, bridged ball retainer prevents retainer migration.
•

  7957 – Full extension, dual mounting capability, side mount load capacity up to 350 lbs. (159 kg) per pair, flat mount load capacity up to 150 lbs. (68 kg) per pair, lever disconnect, bridged ball retainer prevents retainer migration.
•

  9301E – Full extension, loads up to 600 lbs. [272 kg.] per pair, non-disconnect, optional platform mounting bracket kits available. Load rating varies based on application. See technical sheet for details.
•

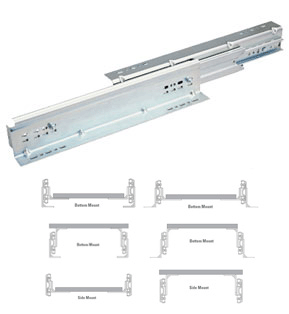

  9301 Bracket Kit – Accessory for 9301
•

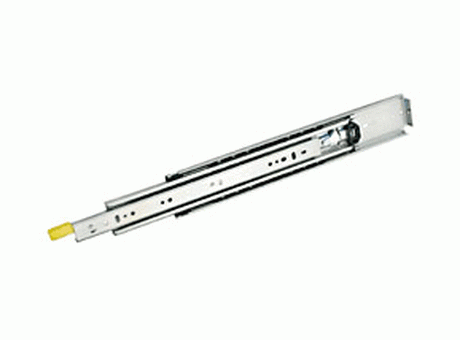

  9307E - Lock-Out only, 600 lbs., Full Extension
•

  9308E – Full extension, lock-in and lock-out feature with front lever, loads up to 600 lbs.[272 kg.] per pair, non-disconnect, optional platform mounting bracket kits available.Load rating varies based on application. See technical sheet for details
•

  C3600-200 - Heavy Duty Full-Extension and Self-Closing Slide with Platform Mount
•

  C3600-201 - Heavy Duty Full-Extension and Self-Closing Slide with Platform Mount
•

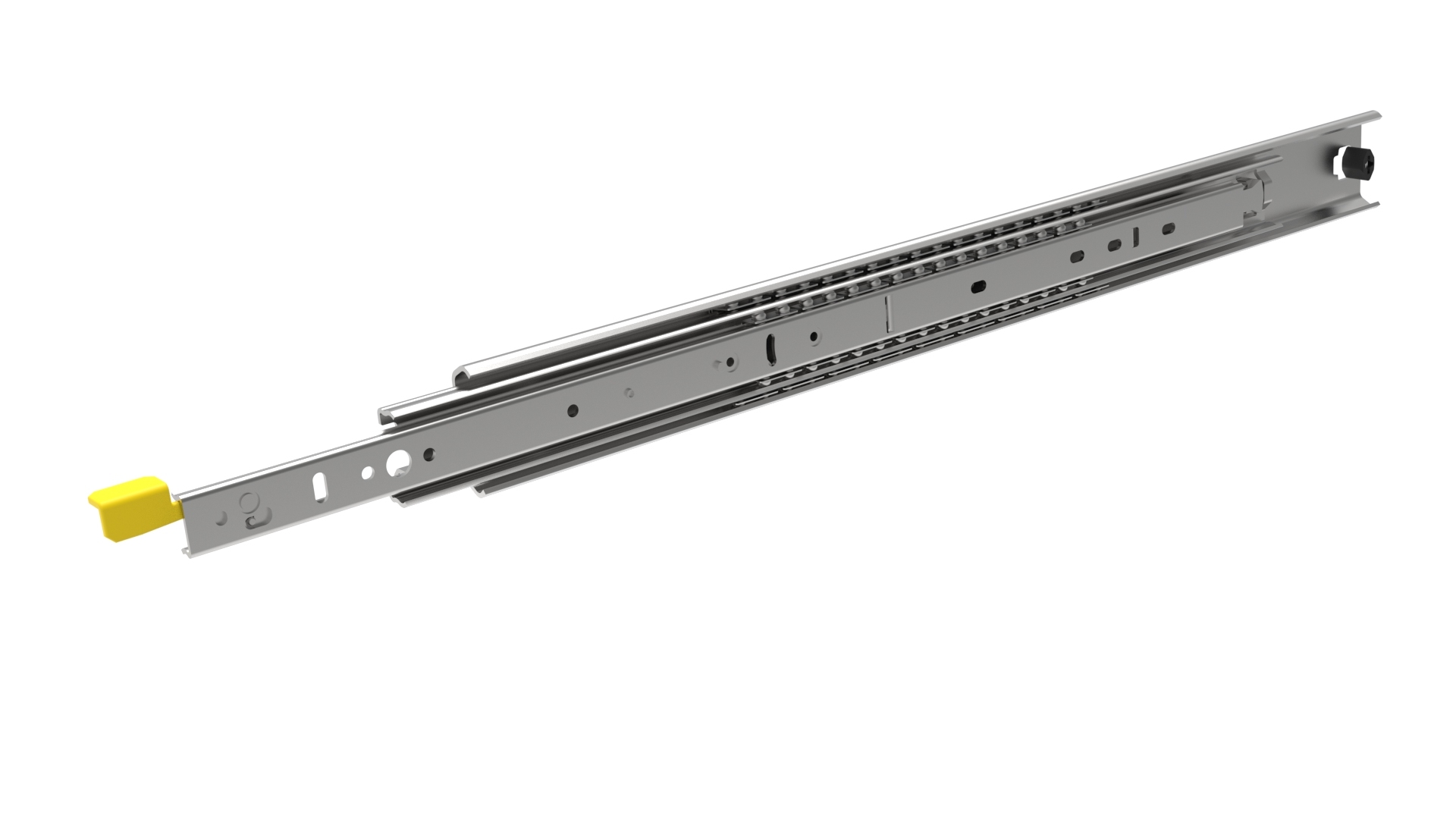

  3608 Heavy-Duty Slide with Lock-In & Lock-Out for loads up to 275 lbs.

  The Accuride 3608 is a full-travel and locking drawer slide for stationary loads up to 275 lbs. This heavy-duty slide features lock-in and lock-out functionality to secure drawers open or closed. The 3608 also has a non-disconnect design to prevent drawers from being removed.
