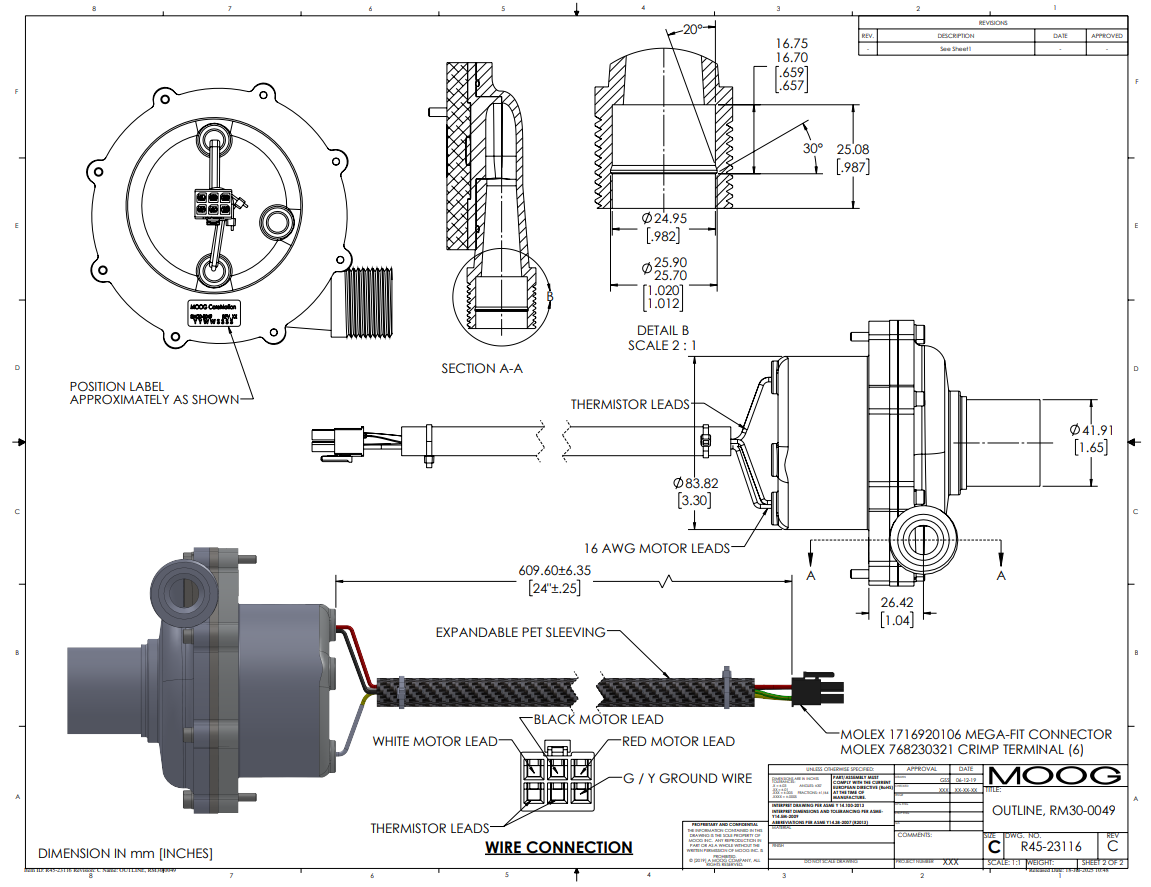

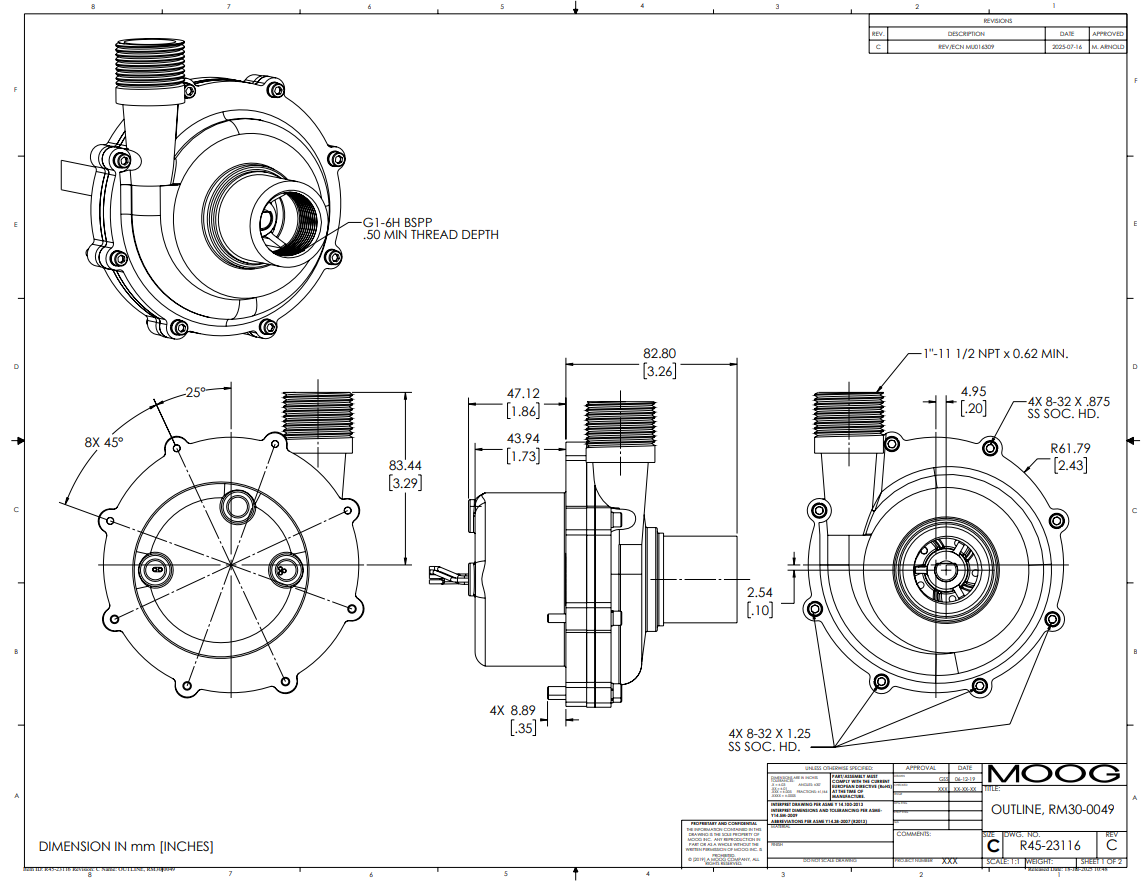

Model RM30 Pump with Drive System

The RM30-0049/RMC051-0003 pump system is a 48-volt 700 watt drive/pump system for cooling applications. The drive commutates and controls the integrated 3-phase permanent magnet brushless motor/pump in constant speed operation utilizing back-EMF sensorless commutation.

3D
Product Detail
Drawings
Documents

Helper Drawing(s)

Additional Documentation

CAD Model Download
Bill of Materials
